The ZL-2597 mixing set is a dependable heating component from Bzvalve, optimized for underfloor heating and radiator systems. As an experienced underfloor heating factory and underfloor heating oem, Bzvalve provides reliable manifold heating solutions worldwide.
| Parameter | Specification |
|---|---|
| Medium | Water, glycol solutions (Max. percentage of glycol is 30%) |
| Working temperature range | 5~100℃ |
| Maximum working pressure | 10bar |
| Centre distance | 45mm |
| Materials | Brass |

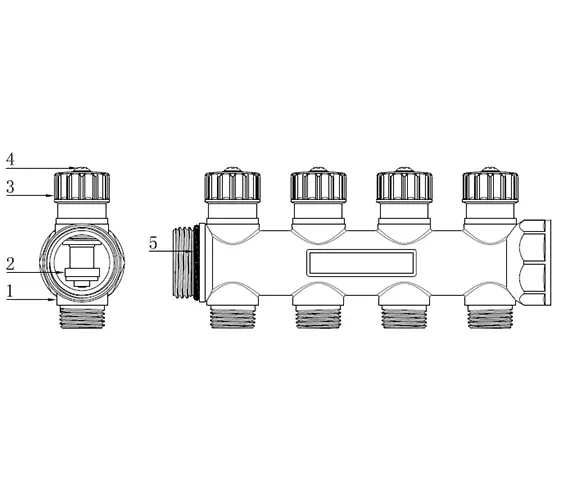

| No. | Components | Material |
|---|---|---|
| 1 | Manifold Body | Brass |
| 2 | Valve core | Brass |
| 3 | Handwheel | ABS |
| 4 | The cross screw | A304 |
| 5 | Seals | EPDM |

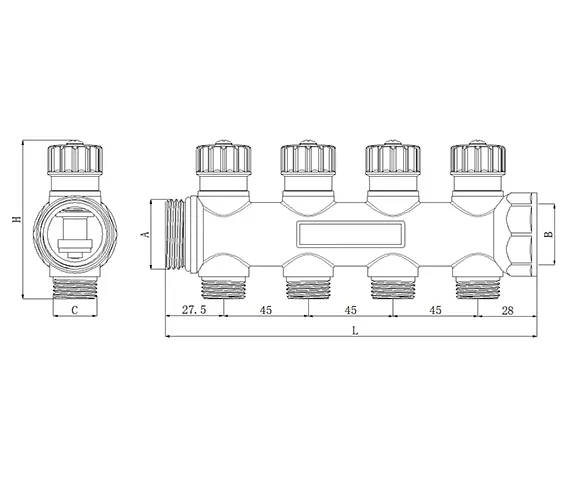

| Code | No. of outlets | A | B | C | L | H |
|---|---|---|---|---|---|---|
| ZL113420002 | 2 | G3/4″ | G3/4″ | G1/2″ | 97.5 | 66 |
| ZL113420003 | 3 | 142.5 | ||||
| ZL113420004 | 4 | 187.5 | ||||
| ZL113425002 | 2 | G1″ | G1″ | G1/2″ | 100.5 | 75 |
| ZL113425003 | 3 | 145.5 | ||||
| ZL113425004 | 4 | 190.5 |
