Bzvalve supplies the ZL-2231 Electric three-way valve for efficient underfloor heating and manifold heating applications. Manufactured to strict standards, it supports comfortable, energy-saving heating as a trusted underfloor heating factory.
| Parameter | Value |
|---|---|
| Maximum working pressure | 10bar |
| Maximum working temperature | 120°C |
| Thread specification | G1″ (ISO228-1) |
| T/C connection head | M30x1.5 |

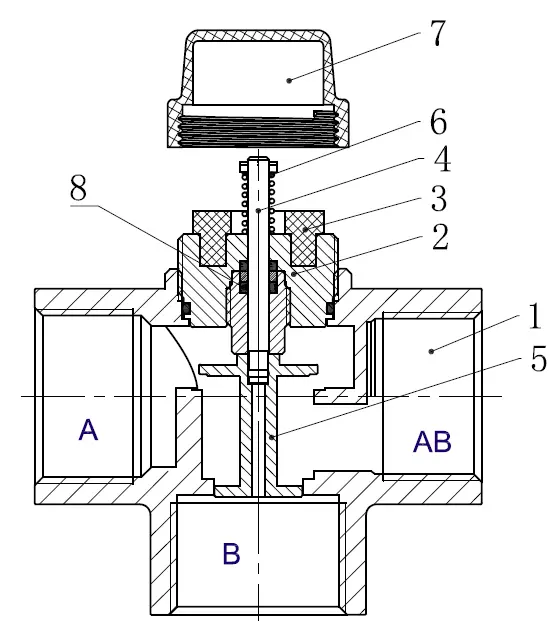

| No. | Components | Materials |
|---|---|---|
| 1 | Valve body | Brass |
| 2 | Cap | Brass |
| 3 | Rubber boot | NBR |
| 4 | Valve stem | A304 |
| 5 | Valve plug | Brass |
| 6 | Spring | A304 |
| 7 | Safety helmet | PE |
| 8 | Seals | EPDM |

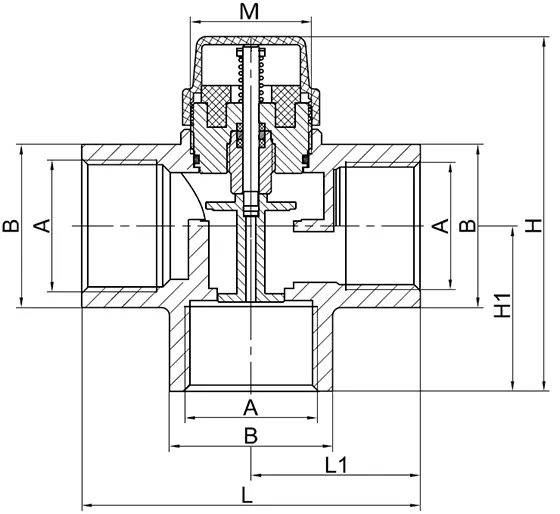

| Code: ZL2231252525 | |||||
|---|---|---|---|---|---|
| A | B | H | H1 | L | L1 |
| G1″ | 40.5 | 90 | 41 | 84 | 42 |
