Bzvalve supplies the ZL-2132 Adjustable constant temperature mixing valve for efficient underfloor heating and manifold heating applications. Manufactured to strict standards, it supports comfortable, energy-saving heating as a trusted underfloor heating factory.
| Materials | Performance |
|---|---|
| Body: Brass | Maximum static pressure: 16bar |
| Connections: Brass | Working pressure: ≤4bar |
| Hand wheel: ABS | Temperature adjustment range: 38~60°C |
| Seals: EPDM | Temperature control precision: ±2℃ |
| Spring: Stainless steel | Surface: chrome Plated |

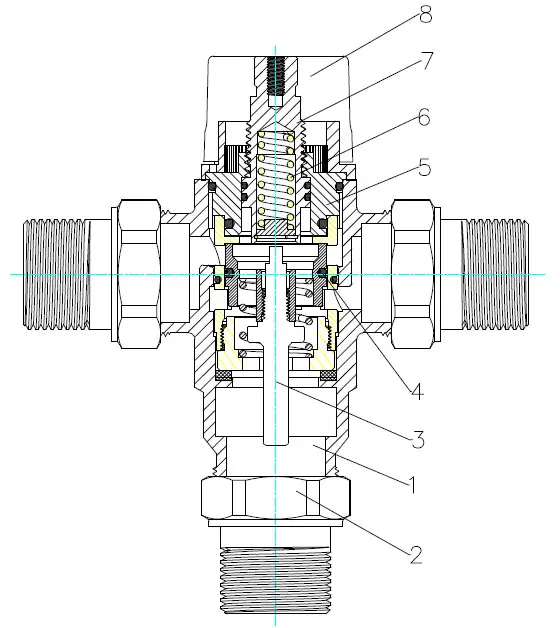

| No. | Components |
|---|---|
| 1 | Valve body |
| 2 | Connections |
| 3 | Temperature-sensing element |
| 4 | Seals |
| 5 | Lock Nut |
| 6 | Spring |
| 7 | Regulating stem |
| 8 | Hand wheel |

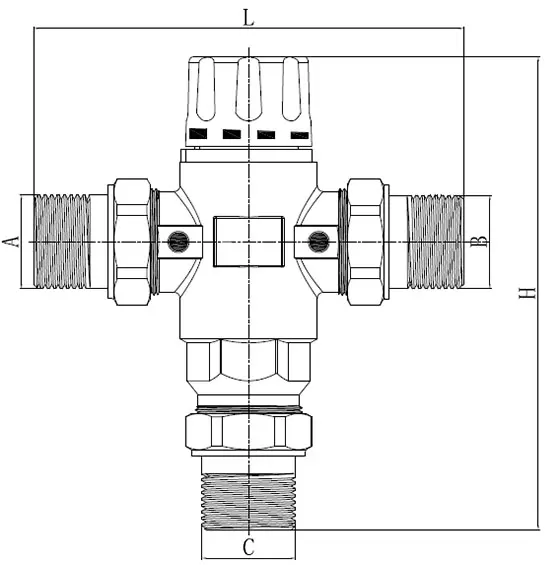

| Code | A | B | C | H | L |
|---|---|---|---|---|---|
| ZL21321212 | 1/2″ | 1/2″ | 1/2″ | 150 | 115 |
| ZL21323434 | 3/4″ | 3/4″ | 3/4″ | 153 | 121 |
| ZL21320101 | 1″ | 1″ | 1″ | 158 | 125 |
